Smart Card Readers are commonly used for electronic processes such as personal identification, financial transactions (EMV credit card, debit or stored value), access control (physical access and logical access), authentication, loyalty, hospitality and gaming.UHF Smart Card Reader has high sensitivity read-write performance and fast anti-collision processing algorithm, and the reading speed is up to 90 tags/second. The product supports electronic tags from multiple manufacturers in accordance with ISO 18000-6C/EPC Gen2 standards.

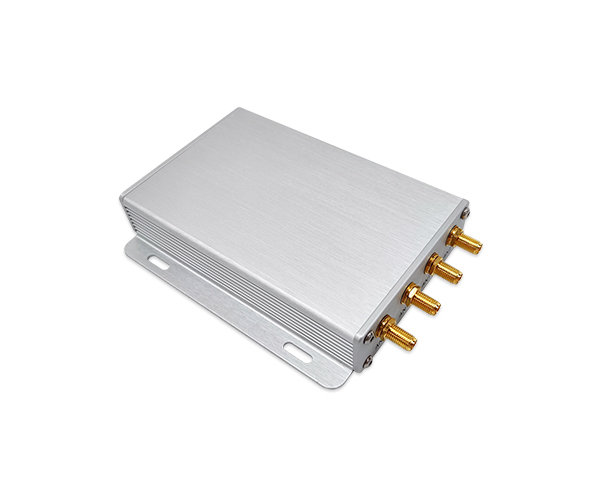

Product Name | UHF 900 MHz RFID Reader ISO 18000-6C, EPC Gen2 Smart Card Reader for Library Management and Drug Tracking |
Frequency Range | 860 MHz - 960 MHz (UHF) |
Protocol | ISO 18000-6C, EPC Gen2 |
Reading Distance | Up to 12 meters (depends on environment and antenna) |
RF Power Output | Typically 30 dBm (adjustable) |

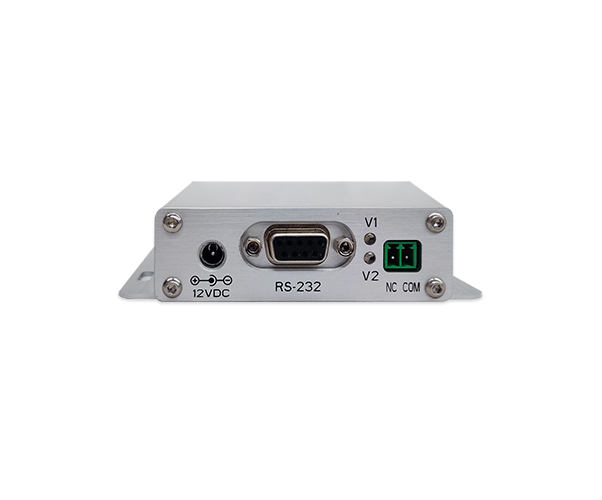

Communication Interfaces | RS232, RS485, Ethernet, USB (varies by model) |

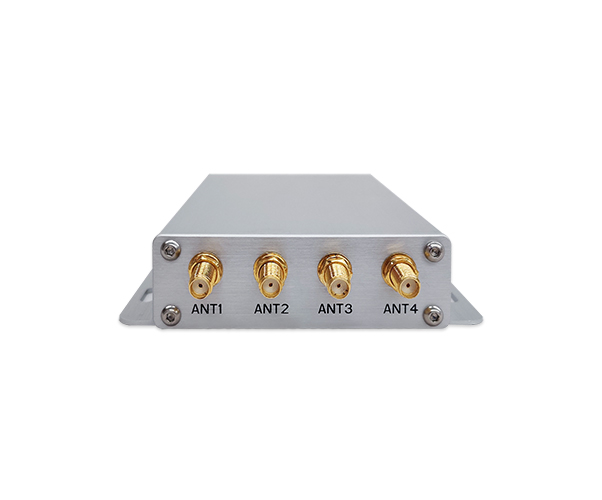

Antenna Ports | 1 or 2 (depends on model) |
Power Supply | 9V - 24V DC |
Power Consumption | 10W - 15W (typical) |
Data Rate | 40 kbps - 640 kbps |
Tag Support | UHF RFID tags, Smart Cards (ISO 18000-6C, EPC Gen2) |
Reading Mode | Single tag reading, Multi-tag reading |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -40°C to 85°C |
Environmental Protection | IP54 |
Mounting Type | Wall-mounted, Pole-mounted, or Fixed Installation |
Dimensions | Varies (typically 250mm x 200mm x 50mm) |
LED Indicators | Power, Communication, RFID Status |
Audio Indicators | Beep for tag detection and successful reads |
GPIO (General Purpose I/O) | For control signals or integration with external systems |
Support for Multiple Tags | Yes, supports multiple tag reads simultaneously |
Security Features | Anti-collision, Data encryption |
Application Use | Library management, Drug tracking, Asset management, etc. |
USB Interface | Optional (for easy connection to computers or external devices) |
Ethernet | Optional (for networked installations) |
