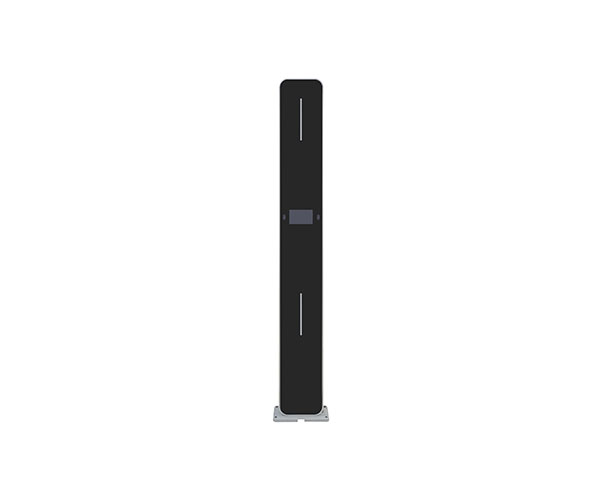

The RJ45 RS232 Interface UHF RFID Reader Anti-Theft RFID Gate is a highly versatile and reliable solution for RFID-based asset management, inventory control, and anti-theft protection in libraries and other environments. Its support for Windows-based systems, wide aisle width, and long detection range make it a valuable addition to modern libraries looking to enhance security, streamline operations, and improve customer service. With its robust design, real-time tracking, and easy installation, it provides a seamless, cost-effective way to manage assets and protect against theft.
The UHF RFID reader is typically responsible for reading RFID tags attached to library books or other items. The reader communicates with a computer system to relay the tag information, enabling functions such as inventory management, anti-theft detection, and check-in/check-out processes.
Product Name | RJ45 RS232 Interface UHF RFID Reader Anti-Theft RFID Gate for Library |
Type | UHF RFID Gate Reader with Anti-Theft Functionality |
Operating Frequency | 860-960 MHz (UHF) |
RFID Protocols Supported | ISO 18000-6C, EPC Gen2 |
Communication Interface | RJ45 (Ethernet), RS232 |
Support for Operating Systems | Windows |
Tag Compatibility | UHF RFID tags (ISO 18000-6C, EPC Gen2) |
Detection Range | Up to 2 meters (depending on tag and environment) |
Aisle Width | Up to 120 cm |
Reading Speed | Up to 200 tags per second |
Alarm Type | Visual (LED), Audible (Buzzer) Alarm |
Alarm Indicators | Green (Authorized), Red (Unauthorized), Buzzer for Unauthorized Access |
Power Supply | AC 110V-240V, DC 12V |
Power Consumption | 10W - 15W |
Operating Temperature | -10°C to +50°C |
Storage Temperature | -20°C to +60°C |
Dimensions (L x W x H) | 400 mm x 120 mm x 45 mm |
Weight | 6-8 kg (approx.) |
Material | ABS/PC (Durable, UV-resistant) |
Environmental Protection | IP65 (Dustproof and Water-resistant) |
Mounting Type | Wall-mounted or Post-mounted |
Installation | Easy installation with standard connectors |
Communication Protocol | Wiegand, RS232, TCP/IP (configurable via software) |
Security Features | Anti-theft detection, Real-time asset tracking |
