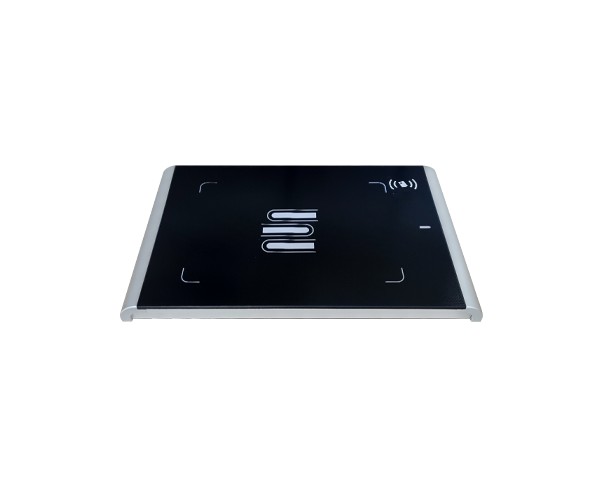

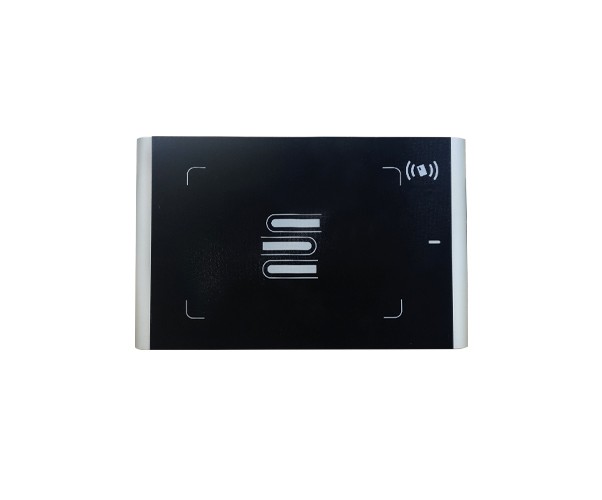

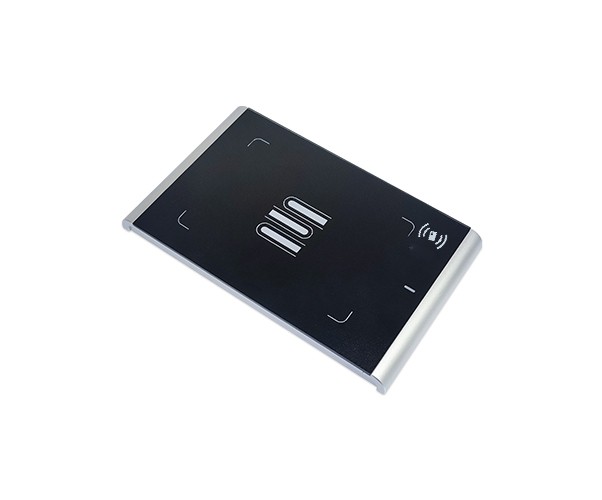

Baba Barfani offers, HF Desktop RFID reader is specifically designed for reading small quantity electronic tags that supports ISO15693 and ISO14443A/B protocols. It provides high-sensitivity read and write capability. It is an all-in-one desktop device that integrates a reader/writer module and antenna into one unit.With reader card module Special design.
Product Name | RFID Scanner Desktop RFID ID Card Reader, Close Range HF RFID Card Writer with Reader Card Module |
Operating Frequency | 13.56 MHz (HF RFID) |
RF Power Output | 0.5W - 1W (Typically) |
Voltage | 5V DC via USB or 9V DC (depending on model) |
Communication Interface | USB 2.0, RS232 (depends on model) |
Tag Types Supported | ISO 14443A/B, ISO 15693, Mifare Classic, Mifare DesFire, NTAG |
Detection Range | Up to 10 cm (close range, depends on tag and environment) |
Card Writing Capability | Supports writing and encoding data to HF RFID cards |
Operating Temperature | -10°C to +50°C |
Relative Humidity | 10% - 90% (non-condensing) |
Power Consumption | Typically 0.5W - 1W |
Mounting Type | Desktop Mount (Stand-alone unit) |
LED Indicators | Yes (Green/Red LED for status, read/write operations) |
Buzzer | Yes (For read/write success or failure notification) |
Dimension | Typically 120mm x 100mm x 30mm (varies by model) |
Weight | Typically 0.2 - 0.5 kg |
IP Rating | IP42 or IP54 (depends on model) |
Software Compatibility | Integration with card management software, SDK/API |
Security Features | Encryption, secure data writing |
