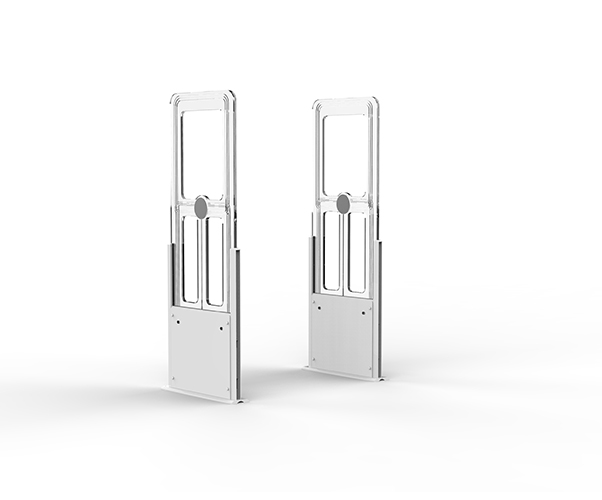

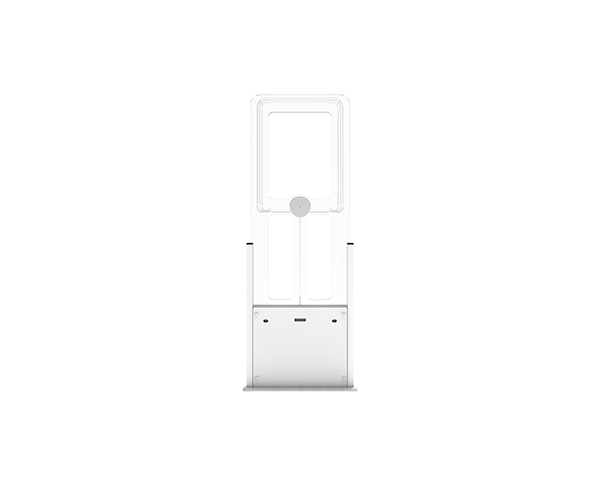

Baba Barfani offers RFID gate antennas that meet the highest specification and design demands. Our clear gate models offer everything either library operator or architect could wish in terms of functionality and design. Our crystal gate model adds another dimension: a visually striking antenna made entirely of acrylic that is also notable for its harmonious proportions. In addition to their innovative design, our antennas are distinguished by their powerful 3D reading performance, which allows aisle widths of up to 90cm to be created. Antenna tuning is performed automatically, without the use of specialist tools. It is also possible to create up to nine adjant aisles without the need for additional synchronisation. Standard features of all our gate antennas include permanent function monitoring and automatic diagnostics, as well as a people counter.
Product Name | Multi-Item Detection RFID Gate Reader for Library Management System |
Operating Frequency | 13.56 MHz (HF RFID) |
RF Power Output | 1W - 3W (Typically) |
Voltage | 9V - 24V DC |
Communication Interface | RS232, RS485, Wiegand, TCP/IP, USB (depends on model) |
Detection Range | Up to 1 meter (can vary based on RFID tag and environment) |
Multi-Item Detection | Supports detection of multiple tags at once (anti-collision) |
Detection Speed | Fast detection (typically < 1> |
Tag Types Supported | ISO 14443A/B, ISO 15693, Mifare, Smart Labels |
Antenna Type | Integrated or External Antenna (depends on model) |
Tag Compatibility | RFID books, library tags, key fobs, RFID cards |
Operating Temperature | -20°C to +60°C |
Relative Humidity | 10% - 90% (non-condensing) |
Power Consumption | Typically 3W - 6W (depending on model and usage) |
Mounting Type | Surface Mount, Ceiling Mount, or Wall Mount (depends on model) |
LED Indicators | Yes (Green/Red LED for item detected, or access granted/denied) |
Buzzer | Yes (For item detected or alarms) |
Dimension | Varies by model (typically 400mm x 300mm x 40mm) |
Weight | Varies by model (typically 1 - 3 kg) |
IP Rating | IP54 or higher (depends on model) |
