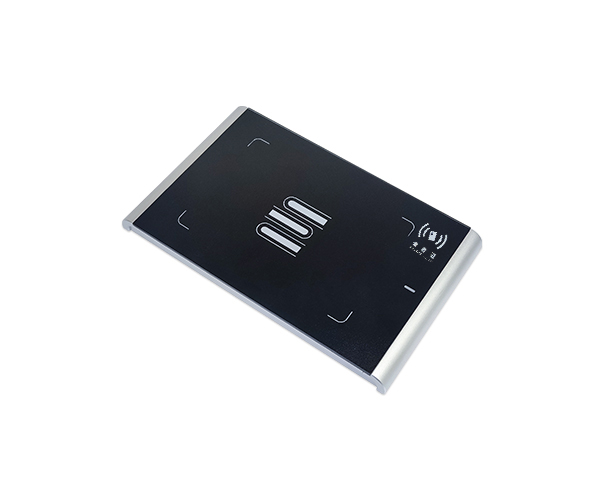

ULSR21-ID is integrated two reader modules inside as well as a senstive antenna. this rfid library reader is equipped with metal shileding function to avoid interference from metal, power adaptor, computer, mobile phonte or any other devices that can reflect or transmit electro-managetic wave.For its anti-collision algorithm and strong reading performance, it could reader 6~7 books at the same time to improve the books borrowing and returing effiency. Considerting the electro-magnatic interference around the reader.
Product Name | EPC Gen2 RFID Library Reader/Writer UHF 860-960 MHz Staff Workstation |
Type | UHF RFID Reader/Writer |
Frequency Range | 860 MHz - 960 MHz |
RFID Protocol | EPCglobal Class 1 Gen 2 / ISO 18000-6C |
Reading Range | Up to 1.5 meters (depending on the tag and environment) |
Writing Capability | Read and Write functionality for compatible RFID tags |
Antenna Type | Integrated UHF Antenna |
Power Supply | 12V DC / USB-powered (optional) |
Interface | USB, Ethernet, RS-232, Wiegand (optional) |
Communication Protocol | TCP/IP, HTTP, Wiegand, RS-232/RS-485 |
Operating System Compatibility | Windows, Linux, macOS, and customizable library software |
Software Integration | Compatible with popular Library Management Systems (e.g., Koha, Evergreen) |
Tag Compatibility | Compatible with EPC Gen2 tags, ISO 18000-6C tags |
Read/Write Speed | Fast read/write operations (up to 100 tags per second) |
Security Features | Anti-theft detection and secure tag handling |
Environmental Protection | IP54 (Dust and water-resistant) |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -40°C to +85°C |
Dimensions | 180 mm x 160 mm x 35 mm (approx.) |
Weight | 0.4 - 0.6 kg (approx.) |
Mounting Options | Desktop or portable stand |
Indicator Lights | LED indicators (power, ready, error, activity) |
Alarm System | Audible buzzer for alerts (optional) |
User Interface | Simple UI for library staff, customizable settings for library workflows |
Power Consumption | Low power (typically < 5W> |
Communication Range | Up to 1.5 meters (depending on the tag and antenna type) |
Applications | Library checkout/check-in, inventory tracking, book anti-theft system |
Color Options | Black, White |
