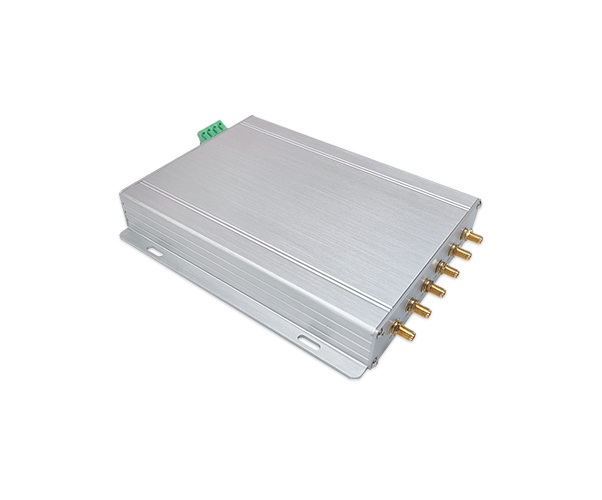

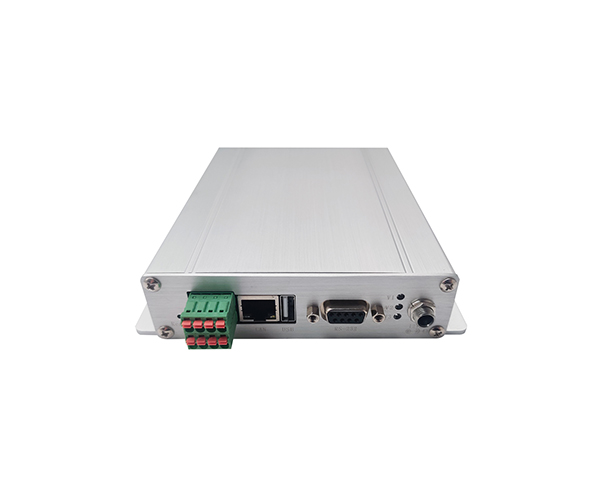

Baba Barfani offers, it is high frequency high-power reader with high sensitive read-write performance and fast anti-collision processing algorithm. It integrates a variety of communication interfaces such as Ethernet, USB, RS232 and RS485. The products has stable performance which is suitable for RFID integration projects with higher requirements on reading and writing.The products have been widely used in jewelry management, chip management, production automation, personnel access control and other fields.
Product Name | ISO15693 HF RFID Long Range Reader (Reading Range 118 cm for Single Antenna) |
Frequency | 13.56 MHz |
Tag Compatibility | ISO 15693 (supports tags complying with ISO 15693 standard) |
Reading Range | Up to 118 cm (varies with tag type, environment, and antenna setup) |
Antenna | Single Antenna |
Communication Interface | Ethernet, RS-232, RS-485, USB, or Wiegand |
Power Supply | 12V DC |
Protocol | ISO 15693 |
Reader Type | Fixed Mount RFID Reader |
Read Speed | Capable of reading multiple tags per second |
Power Output | Up to 30 dBm |
Environmental Protection | IP65 or higher (depends on model) |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -40°C to +85°C |
Dimensions (Reader) | Typically 250mm x 200mm x 50mm |
Weight (Reader) | Approximately 1.5 kg |
Mounting Options | Wall-mounted, ceiling-mounted, or stand-alone |
Indicator LEDs | Power, Status, and Read/Write indicators |
