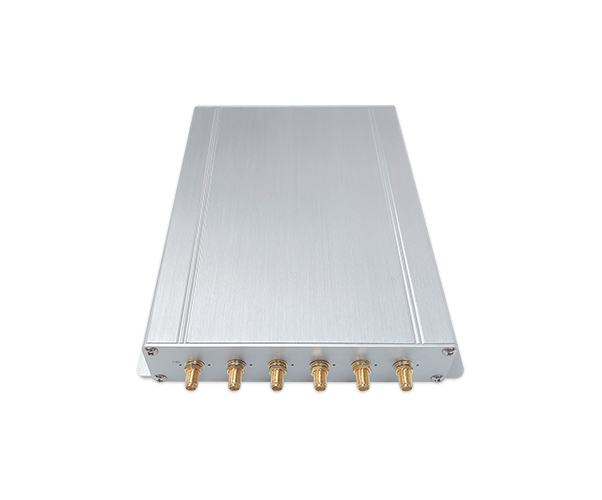

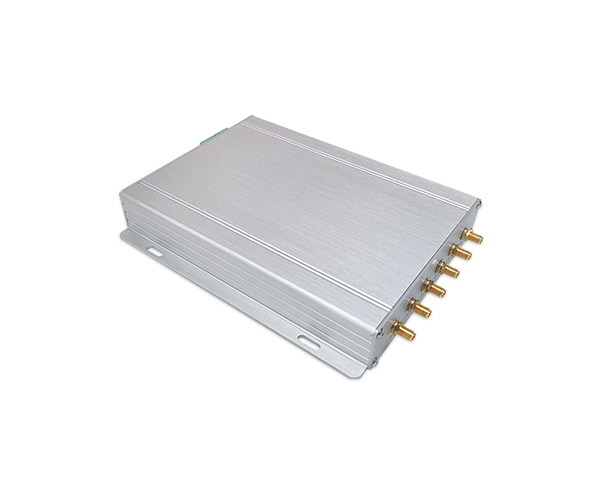

The ISO15693 HF Long Range Reader 13.56MHz with 6 SMA Ports is a high-performance RFID reader designed specifically for intelligent bookshelf systems in libraries. This RFID reader is equipped with cutting-edge technology, making it ideal for managing library inventory, tracking books, and ensuring security with ease and efficiency. The reader operates at 13.56 MHz and supports popular RFID protocols such as ISO 15693 and ISO 14443A/B, making it compatible with a wide range of RFID tags commonly used in library management systems.This product uses an external antenna port design. Different models have different numbers of antenna interfaces. The antenna connector uses a standard SMA female connector with a matching impedance of 50?.
Product Name | ISO15693 HF Long Range Reader 13.56 MHz with 6 Ports SMA for Intelligent Bookshelf RFID Library |
Type | HF RFID Reader (Long Range) |
Frequency Range | 13.56 MHz |
RFID Protocol | ISO 15693, ISO 14443A/B |
Reading Distance | Up to 3 meters (depending on tag, environment, and antenna) |
Ports | 6 SMA (SubMiniature version A) Ports for external antennas |
Power Supply | 12V DC, PoE (Power over Ethernet) |
Interface | RS-232, RS-485, Ethernet, Wiegand (optional) |
Communication Protocol | TCP/IP, Wiegand, RS-232/RS-485, Ethernet |
Tag Compatibility | Compatible with ISO 15693 and ISO 14443A/B RFID tags |
Antenna Type | External antennas (6 ports for flexible antenna configuration) |
Signal Protocol | EPC, ISO 15693, ISO 14443A/B |
Reading Speed | Up to 100 tags per second |
Environmental Protection | IP65 (Dust and water resistant) |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -40°C to +85°C |
Dimensions | 200 mm x 150 mm x 35 mm (approx.) |
Weight | 0.5 - 1.0 kg (approx.) |
Mounting Options | Wall mount, Desk mount, or portable |
Software Integration | Compatible with major library management systems (e.g., Koha, Alma, proprietary systems) |
User Interface | LED indicators for status, Audible alert for errors |
Power Consumption | Low Power Consumption (typically < 5W> |
Alarm System | Audible (Buzzer) and Visual (LED) for alerts |
Applications | Intelligent bookshelf systems, library inventory management, asset tracking, anti-theft systems |
Color Options | Black, White |
