Baba Barfani offers, Integrated Library 13.56MHz RFID Security Gate, it can be easily integrated library system (ILS) , like KOHA ,ALA , EBSCO and others customer special library systems . They also encode detailed material information on the RFID tag. The tag is “read” by the security gate and the signal is sent to your ILS. When an item that was not properly checked out passes through the gates the ILS is able to connect the type and title of the material that triggered the alarm, which is immediately communicated to the staff workstations. This RFID gate reader ?support many kinds ISO15693 protocol RFID tag , like I Code SLI/SLIX/SLIX2 , etc. In additional , it also be equipped with a customer counting, which will enable you to monitor the patrons coming in and leaving your library clearly .

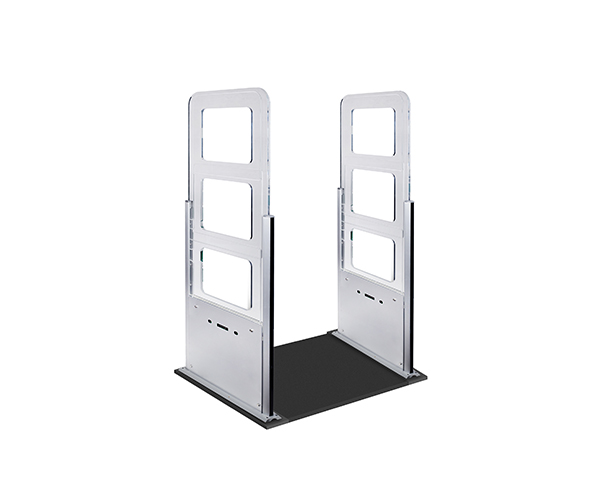

Product Name | Integrated Library RFID Gate System (13.56 MHz) with Multiple Aisles and RFID Door Reader |
Operating Frequency | 13.56 MHz (HF RFID) |
RF Power Output | 1W - 3W (Typically) |
Voltage | 9V - 24V DC |
Communication Interface | RS232, RS485, Wiegand, TCP/IP, USB (depends on model) |
Detection Range | Up to 1 meter (can vary based on RFID tag and environment) |
Multi-Item Detection | Supports detection of multiple tags at once (anti-collision) |
Detection Speed | Fast detection (typically < 1> |
Tag Types Supported | ISO 14443A/B, ISO 15693, Mifare, Smart Labels |
Antenna Type | Integrated or External Antenna (depends on model) |
Tag Compatibility | RFID books, library tags, key fobs, RFID cards |
Operating Temperature | -20°C to +60°C |
Relative Humidity | 10% - 90% (non-condensing) |
Power Consumption | Typically 3W - 6W (depending on model and usage) |
Mounting Type | Surface Mount, Ceiling Mount, or Wall Mount (depends on model) |
LED Indicators | Yes (Green/Red LED for item detected, or access granted/denied) |
Buzzer | Yes (For item detected or alarms) |
Dimension | Varies by model (typically 400mm x 300mm x 40mm) |
Weight | Varies by model (typically 1 - 3 kg) |
IP Rating | IP54 or higher (depends on model) |
Detection Zones | Multiple detection zones (for positioning multiple books) |
Reader Mode | Reader mode, Anti-theft, Inventory check mode |
Software Compatibility | Integration with library management software (via SDK/API) |
