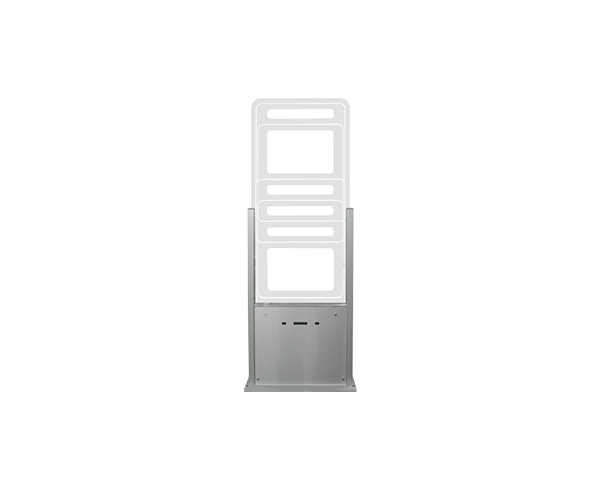

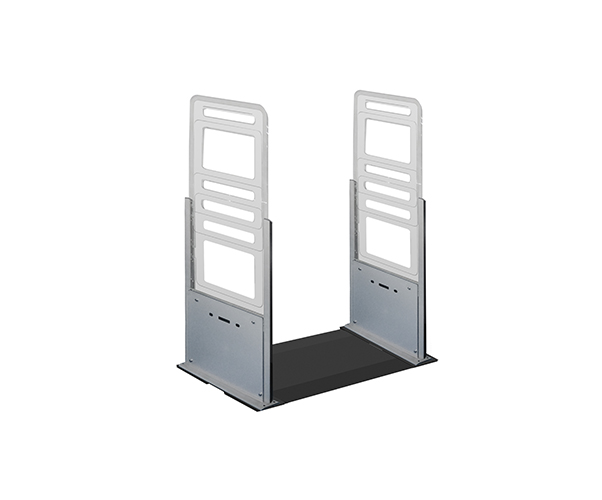

The 13.56MHz RFID library detection gate antenna integrates 3D intelligent technology and it can detect any directions in the 3D spa of device induction zone; The equipment supports electronic tags in accordance with ISO/IEC 15693 and ISO 18000-3M1 standard from multiple vendors, both AFI and EAS safety test model available; Its system supports up to 10pcs gates at the same passageway. Aisle identification distance is above 90cm (The identification distance is related with tag performance, size, site environment and so on). This product can be widely used in library/archives in and out of guard against theft, brand clothing store security and other fields.
Product Name | Indoor RFID Reader for Long-Distance, Library Security Gates with Tag UID Detection |
Operating Frequency | 13.56 MHz (HF RFID) |
RF Power Output | 1W - 5W (Typically, depending on model) |
Voltage | 9V - 24V DC |
Communication Interface | RS232, RS485, Wiegand, TCP/IP, USB (depends on model) |
Detection Range | Up to 3 meters (can vary based on the RFID tag and environment) |
Multi-Item Detection | Yes (Supports detection of multiple tags at once with anti-collision) |
Tag UID Detection | Yes (Detects and reads unique UID of RFID tags) |
Detection Speed | Fast detection (typically < 1> |
Tag Types Supported | ISO 14443A/B, ISO 15693, Mifare, Smart Labels |
Antenna Type | Integrated or External Antenna (depends on model) |
Tag Compatibility | RFID books, library tags, key fobs, RFID cards |
Operating Temperature | -20°C to +60°C |
Relative Humidity | 10% - 90% (non-condensing) |
Power Consumption | Typically 3W - 8W (depending on model and usage) |
Mounting Type | Surface Mount, Ceiling Mount, or Wall Mount (depends on model) |
LED Indicators | Yes (Green/Red LED for item detected or access granted/denied) |
Buzzer | Yes (For item detected or alarms) |
Dimension | Varies by model (typically 400mm x 300mm x 40mm) |
Weight | Varies by model (typically 1 - 3 kg) |
IP Rating | IP54 or higher (depends on model) |
Detection Zones | Multiple detection zones (for positioning multiple books) |
Reader Mode | Reader mode, Anti-theft, Inventory check mode |
Software Compatibility | Integration with library management software (via SDK/API) |
