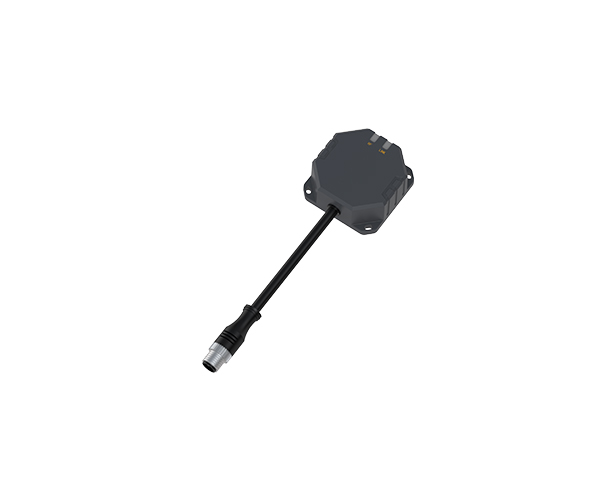

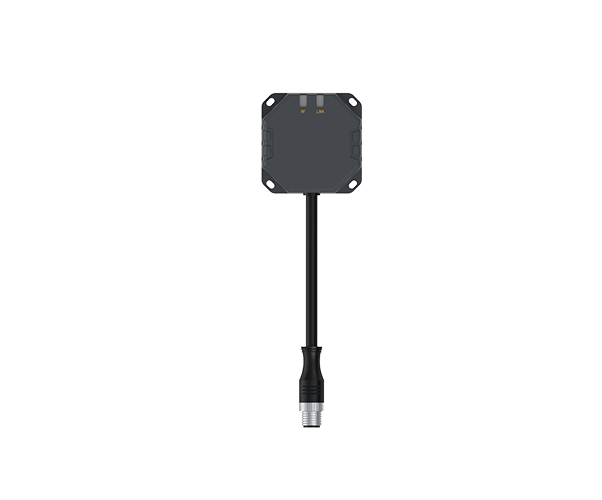

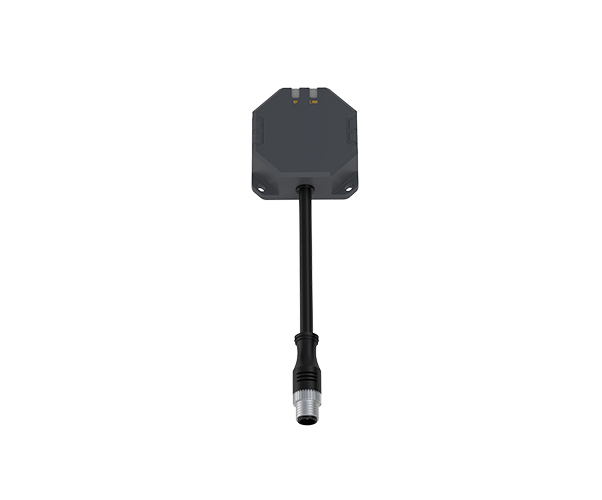

High Frequency RFID Proximity Reader for Asset Management Modbus TCP Communication IP67

₹ On Request

Baba Barfani offers, near-field HF RFID reader is specifically designed for applications require very small range detection. It provides reliable reading in restricted but dense zone, it is idea choice for short range reading applications.

Specification

Product Name High Frequency RFID Proximity Reader for Asset Management with Modbus TCP Communication and IP67 Protection
Operating Frequency 13.56 MHz
Supported Standards ISO 15693, ISO 14443 Type A/B
Reading Range Up to 90 mm
Communication Mode Modbus TCP
Communication Rate 10/100 Mbps
Power Supply 24V DC (9-30V) or 48V POE (46-54V)
Current Consumption <0>
Physical Dimensions 360 mm × 83 mm × 28 mm
Housing Material ABS and Metal Plate
Interface M12A (4-pin male) and M12D (4-pin male)
Operating Temperature -40°C to +85°C

  • Additional Information:

    • Humidity 5% to 95% RH (non-condensing)
    Protection Rating IP67 (dustproof and waterproof)
    Weight 580 g
    Mounting Method Fixed using two M5 screws
    Indicator Lights Two LEDs (Red and Green)
    Features - Built-in design with strong anti-interference capability
      - High sensitivity read-write performance
      - Integrated design for easy installation and deployment
      - IP67 protection grade suitable for harsh environments
    Applications - Factory automation
      - Engine assembly lines
      - Warehouse management
      - Logistics and inventory control
Read More Details
