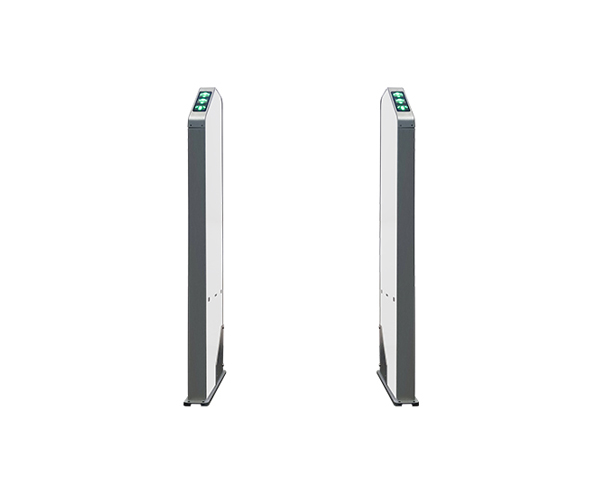

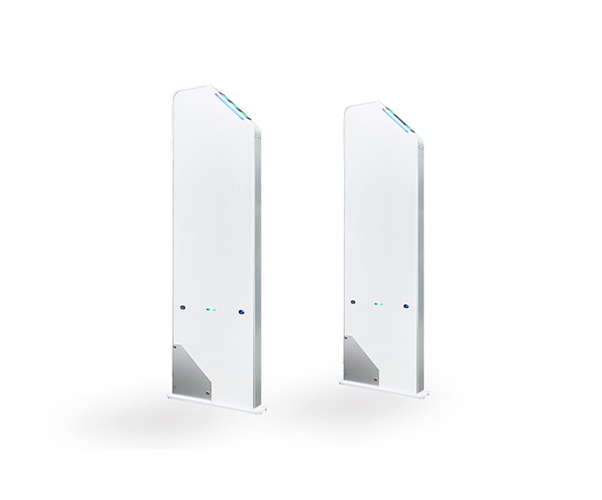

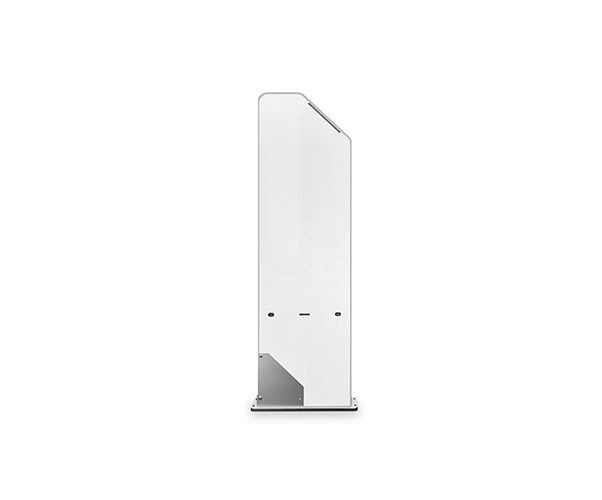

UHF RFID smart library gate reader is a new UHF access control system, which adopts a new system framework and integrates self-developed high-performance read-write module (based on Impinj R2000) and antenna. It can quickly detect multiple labels and give audible and visual alarm to illegal labels.
Product Name | Anti-Theft UHF RFID Smart Library Gate Reader with Aisle Width 120CM and ISO18000-6C Protocol |
Type | UHF RFID Smart Gate Reader for Anti-Theft and Library Asset Tracking |
Operating Frequency | 860-960 MHz (UHF) |
RFID Protocols Supported | ISO 18000-6C, EPC Gen2 |
Communication Interface | RS232, TCP/IP, Wiegand (configurable) |
Tag Compatibility | UHF RFID tags (ISO 18000-6C) |
Detection Range | Up to 2 meters (depending on tag and environment) |
Aisle Width | Up to 120 cm |
Reading Speed | Up to 200 tags per second |
Alarm Type | Visual (LED), Audible (Buzzer) Alarm |
Alarm Indicators | Green (Authorized), Red (Unauthorized), Buzzer for Unauthorized Access |
Power Supply | AC 110V-240V, DC 12V |
Power Consumption | 10W - 15W |
Operating Temperature | -10°C to +50°C |
Storage Temperature | -20°C to +60°C |
Dimensions (L x W x H) | 400 mm x 120 mm x 45 mm |
Weight | 6-8 kg (approx.) |
Material | ABS/PC (Durable, UV-resistant) |
Environmental Protection | IP65 (Dustproof and Water-resistant) |
Mounting Type | Wall-mounted or Post-mounted |
Installation | Easy installation with standard connectors |
Security Features | Anti-theft detection, Real-time asset tracking |
