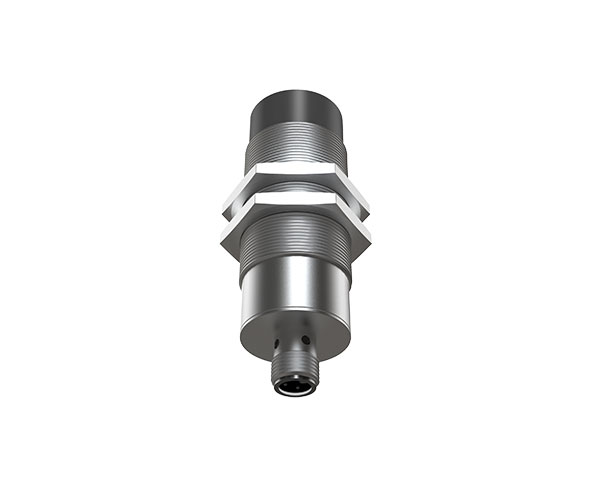

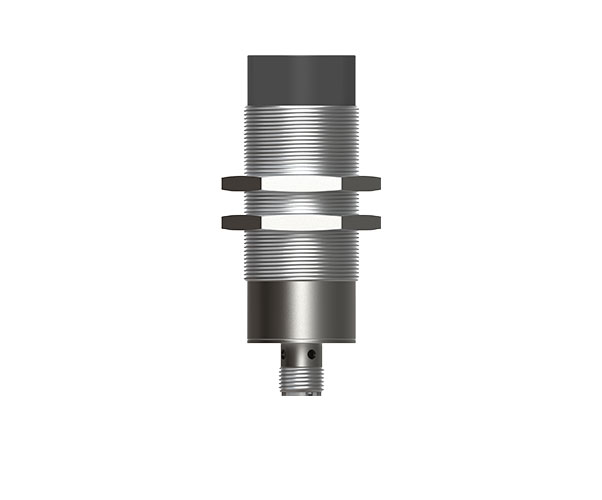

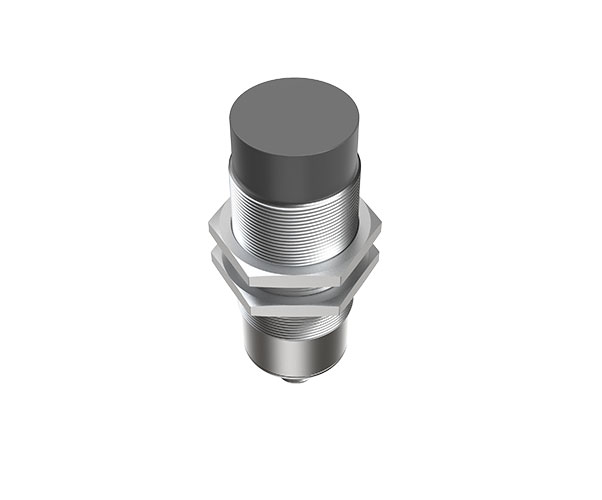

Modbus TCP Communication Fixed Reader is high frequency RFID read/write devices with integrated antenna. They have the characteristics of fast identification speed,high accuracy and convenient networking. Operating frequency is 13.56MHz,in line with ISO15693 and ISO14443 TypeA/B.The housing is made of Brass nickel plating.
Product Name | 13.56 MHz Industrial RFID Reader M12 Interface Modbus TCP Communication Mode for Data Acquisition |
Frequency | 13.56 MHz (HF - High Frequency) |
Communication Interface | M12 (connector type) |
Communication Mode | Modbus TCP/IP |
Power Supply | 24V DC ± 20% |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -40°C to +85°C |
RFID Standard Supported | ISO 14443, ISO 15693 |
Data Acquisition Rate | Up to 50 tags per second |
Tag Compatibility | HF RFID Tags (ISO 14443 Type A/B, ISO 15693) |
Protection Rating | IP65 (Industrial grade, dust and water resistant) |
Network Protocols | Modbus TCP/IP, Ethernet |
Status Indicators | LED indicators for power, communication, and tag reading |
